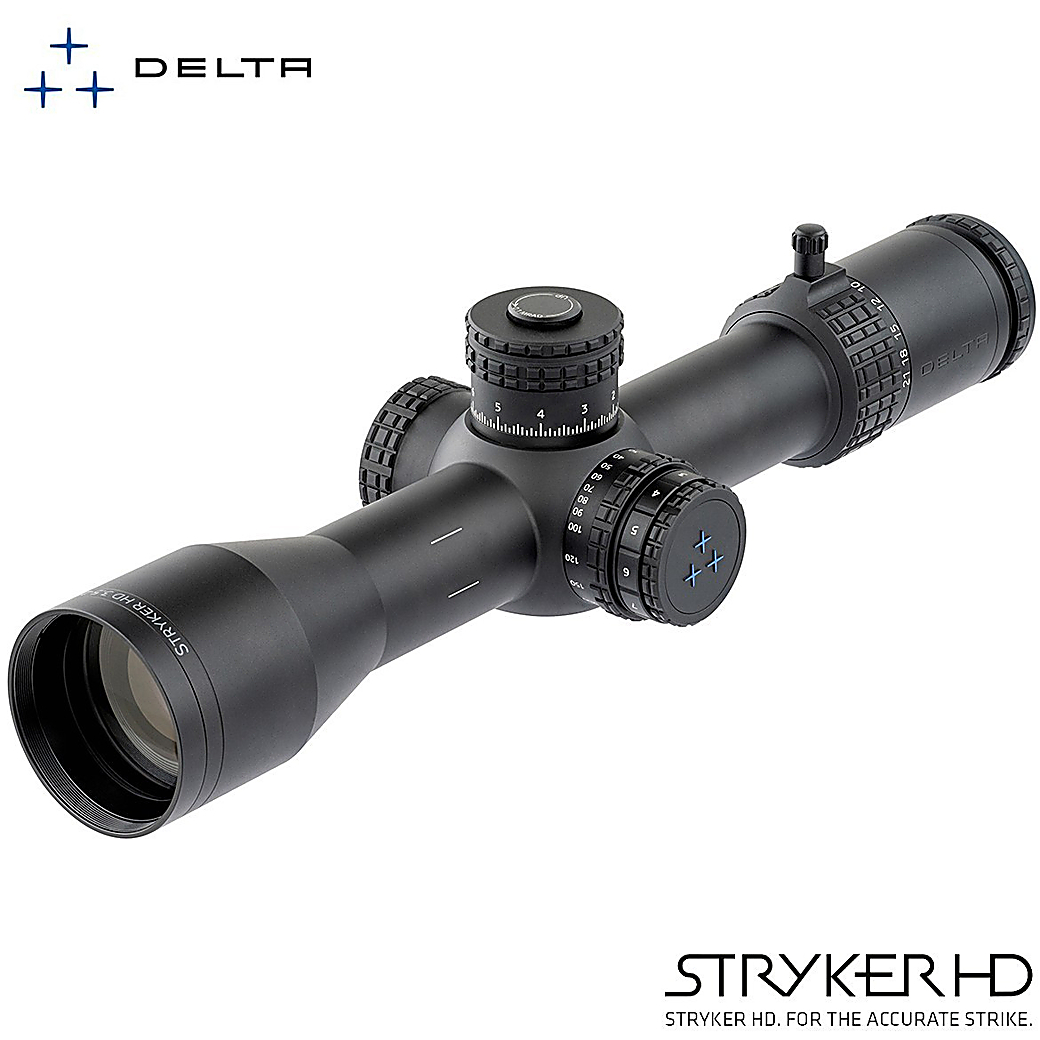

SCOPE DELTA OPTICAL STRYKER HD 3.5-21X44 FFP (DLR-1)
Scope Delta Optical Stryker HD 3.5-21X44 FFP (DLR-1)
New
This is the new version of the Delta Optical Stryker HD 3.5-21×44 FFP
More info
Delta Optical has been helping ambitious shooters achieve their dreams and passions for years. An expression of this is our unique and most advanced range of Stryker HD precision scopes. The sights in this series are characterized by their ED glass construction, which guarantees excellent image quality and high light transmission, special anti-reflective coating and an illuminated central dot that allows shooting even in low light conditions.
The Stryker HD 3.5-21x44 FFP scope is designed for medium and long distance shooting. The first-class ED optics have been enclosed in a solid 44 mm tube and the durable and precise mechanics can measure even at very powerful distances. The viewfinder is equipped with the ZeroLock function which allows you to set the vertical adjustment turret lock to specific settings. The high-quality displays are tested by an impressive range of parallax adjustment, from 9m to infinity.
Let's add that in this model, light transmission reaches 98% for a single layer and 92% for the entire viewfinder. The large eyepiece provides very comfortable observation. The sight is water and fog resistant, as it has been filled with nitrogen, and also allows you to adjust the observation reticle up to 300 cm vertically.
The sight is available with a single reticle in the DPRC-1 and DLR-1 focal foregrounds. The reticles offer maximum shooting comfort and great functionality throughout the viewfinder's zoom range (3.5-21x). The design of the reticles makes it possible to evaluate the distance to the object of known sizes and also to introduce a correction for the descent or elevation of the projectile's flight path and wind corrections.
The Delta Optical Stryker HD 3.5-21x44 FFP sight is available with the following reticles.
· DPRC-1 - ref: DO-2514
· DLR-1 - ref: DO-2515
DLR-1 Reticle
The DLR-1 reticle includes an illuminated center dot with a diameter of 0.07 mrad and thin arms with transparent beams with a thickness of 0.4 mrad. The arms are divided with markers every 0.2/0.5/1 mrad allowing you to accurately estimate the distance to an object of known size and make corrections for the descent or elevation of the bullet's flight path and corrections for wind. The DLR-1 reticle has been specifically designed to operate in the first focal plane (FFP) and maintain constant dimensions in relation to the objective throughout the magnification range. Additionally, the grid is scaled in milliradians, making it easy to convert to metric units (1 milliradian = 10 cm per 100 m).
Technical specifications:
· Model: Stryker HD 3.5-21×44
· Type of reticles available: DPRC-1 and DLR-1
· Correction: 1 click = 0.1 mrad
· Reticle position: First focal plane (FFP)
· Minimum magnification: 1x
· Maximum magnification: 21x
· Illuminated reticle: Yes. *Illuminated DOT center red dot only on DLR-1 reticle
· Diopter adjustment: +3D/-3D
· Adjustment range (Height/Drift): DPRC-1 45/21 MRAD | DLR-1 44/21 MRAD
· Lens diameter: 44 millimeters
· Exit pupil: 8.8 – 2.1 mm
· Eye relief: 71 – 99 millimeters
· Parallax adjustment: 9m – ∞
· Linear field of view at 100 m: 11.1 – 1.9 m
· Angular field of view: 6.33º – 1.06 °
· ZeroLock function: Yes
· Nitrogen filling: Yes
· Tube diameter: 34mm (1 piece)
· Length: 315 millimeters
· Weight: 805g
· Water resistance to water: 0.3 kg/cm2
· Shock resistance: 6500 J
· Operating temperature: -20/71°C
· Reticle power supply: CR2032 battery
· Warranty: 120 months
· Contents of the box: Delta Stryker HD 3.5-21×44 scope, Allen wrench and magnification lever.
Data sheet
| Tube diameter | 34 mm |
| EAN | 5901691625150 |
| UPC | 590169162515 |
