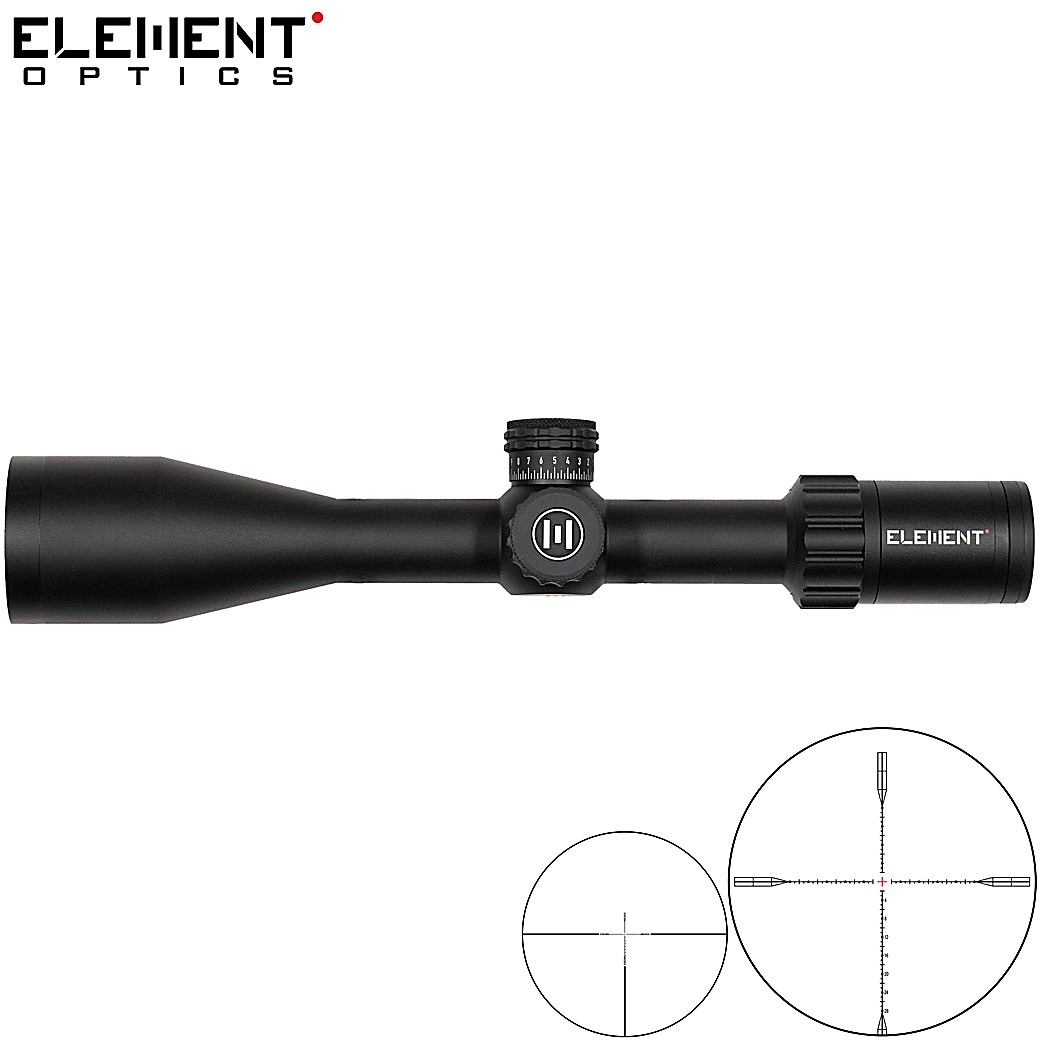

The word “NEXUS” means “focal point”, and that is what this model is to the ELEMENT OPTICS range. The Nexus combines intuitive features like tool-free tactical turrets, zero stop and a removable throw lever with precision engineering to bring you the ultimate 30mm riflescope. A variety of different reticle designs in both MOA and MRAD cater to all shooters: simplified options are easy on the eye, while more complex designs allow experienced shooters to hold off with precision.
This Element Optics Nexus 5-20-50 FFP rifle scope is developed by a team of professional shooters with decades of experience. The scopes from Element Optics offer a very high quality for a very competitive price.
The clear glass of the fully multicoated lenses with anti-fouling layer provides a bright image and the illuminated reticle is positioned in the first focal plane, which means it enhances when zooming in, making the reticle subtensions true at all magnifications. With a magnification range from 5x to 20, the Element Optics Nexus 5-20-50 FFP rifle scope is very suitable for use in middle and long distances. Zooming is made easy by the throw lever that can easily be screwed out and replaced with the included hex screw if preferred.
We offer the following configurations:
The turrets of the Element Optics Nexus 5-20-50 FFP rifle scope feature durable stainless steel internals to cope with constant adjustments as they often are made in some shooting sport disciplines. Of course, there’s a zero-stop and the total adjustment range is 23.2 Mrad or 80 MOA for elevation and 14.5 Mrad or 50 MOA for windage. The parallax can be adjusted from 10 metres until infinity.
Waterproof, shockproof and filled with nitrogen to prevent internal fogging up.
Aluminium sunshade and neoprene bag for lenses protection included.
MAGNIFICATION RANGE | 5-20x |
TUBE DIAMETER | 30mm |
OBJECTIVE LENS DIAMETER | 50mm |
EXIT PUPIL | 8-2.5mm |
EYE RELIEF | 77-93mm |
FIELD OF VIEW | @100yds: 23.3-5.8 ft | @100m: 7.8-1.9m |
CLICK VALUE | 1/4 MOA (20 MOA / REV) | 1/10 MRAD (10 MRAD / REV) |
ELEVATION ADJUSTMENT RANGE | 80 MOA | 23.2 MRAD |
WINDAGE ADJUSTMENT RANGE | 50 MOA | 14.5 MRAD |
MINIMUM PARALLAX | 10 YDS | 10 METERS |
LENGTH | 13.8” | 350mm |
WEIGHT | 28oz | 794gr |
Tube diameter | 30 mm |
EAN | 760655917930 |
UPC | 760655917930 |
