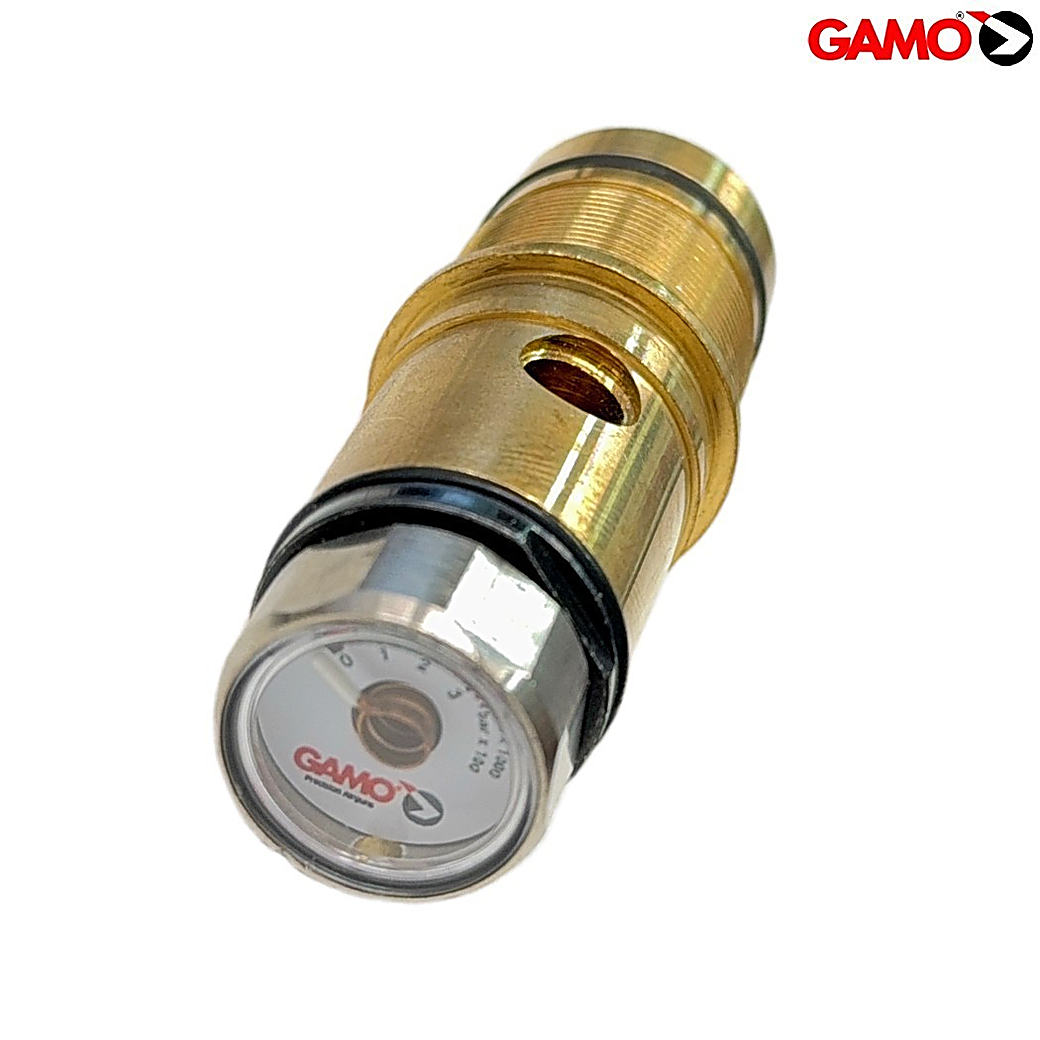

Gamo Quick Fill Assembly

BSA / Gamo Quick Fill with pressure gauge.
This product is primarily aimed at those who have generic brand regulators fitted to their BSA / Gamo. It allows you to see the pressure of your main reservoir at any time during the firing sequence, with maximum measurement reliability.

This quick-fill can be fitted to the BSA / GAMO series versions:

BSA: Hornet, Lonestar, Techstar, Sportsman HV, ULTRA MME, Scorpion, Cadet.


The main body is in black anodised alloy, with a filler cap and a pressure gauge cap in black acetal.
The filling cap rotates to keep the inside of the filling area clean.

The quick-fill probe is brass with the industry standard 1/8" BSP 28tpi thread.
The probe is supplied with spare seals, but replacement seals can be purchased if required.
Note: The probe and seals are for Lane Custom units only.

A complete unit sealing kit is also included in the kit.

It's important to note that other companies are selling replacement tubes for BSA guns and although some units have fitted these tubes, there have been reports of some units getting a bit tight because the threads are not exactly the same as the BSA ones. For this reason, only buy original equipment.
