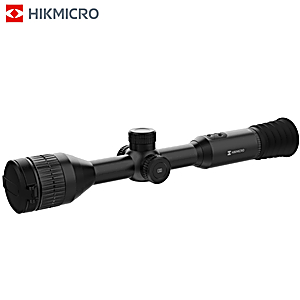

Thermal Imaging Rifle Hikmicro Scope Stellar SH50 50mm (384 x 288)

The HIKMICRO STELLAR SH50 thermal scope provides a clear image in adverse environmental conditions such as darkness, fog, smoke, dust, rain, snow, etc. Its traditional 35mm tube design and extreme detection range of up to 2,600 meters meet the needs of professional hunters who value traditions and seek technological superiority.

Characteristic:

• Thermal resolution 384x288, high sensitivity detector, NETD< 35 mK (25 °C, F# = 1.0).
• Support audio recording.
• It incorporates 5 reticles that can be adjusted to shoot at different distances.
• Support reverse trigger recording.
• Traditional mounting on 30mm rings.
• Support video and snapshot recording, built-in EMMC (64GB).
• 1024x768 resolution 0.39 inch OLED screen.
• Observation distance up to 2600 m.
• Various grid profiles.
• Up to 15 hours of continuous operation.

Thermal module specifications:

• Image Sensor: Uncooled Focal Plane Array.
• Resolution: 384 x 288.
• Frames per second: 50 Hz.
• Pixel interval: 12 µm .
• Response wave band: 8 µm to 14 µm.
• NETD: < 35 mK (25 ‹C, F# = 1.0).
• Lens (focal length): 50mm.
• Detection range: 2600m.
• Field of vision: 5.28º x 3.96º.
• Focus distance: 5 meters.
• Aperture: F1.0.
• Magnification: 3.85x.

Image Display Specifications:

• Screen: 1024 × 768, 0.39 inches, OLED.
• Picture mode: Black Hot, White Hot, Red Hot, Fusion.
• FFC (Flat Field Correction) mode: Automatic, manual, external correction.
• Exit pupil: 5mm.
• Eye relief: 60mm.
• Diopter (range): - 5D to 5D.

System Specifications:

• Digital zoom: 1×, 2×, 4×, 8×.
• Capture snapshot: yes.
• Record Video: On-board video recording.
• Standby mode: yes
• Storage: Embedded EMMC (64GB)
• PIP: yes.
• CPD: yes.
• Access point: yes.
• Uniformity Correction: Automatic, manual, external correction.
• Active track: yes
• Reticle: yes
• Audio recording: yes
• Reverse Activation Recording: Yes
•

Power Supply Specifications:

• Battery Type: Two rechargeable lithium batteries (internal) and one replaceable CR123A (external).
• Battery operating time: 15 hours of continuous operation (@25°C, Wi-Fi off).
• Battery capacity display: yes
• Anti-Reverse Battery Connection: Yes
• Overvoltage protection: yes.
• Power supply: DC 5V/2A, USB Type-C interface. Support QC3.0.

General specifications:

• Working temperature: -30°C to 55°C (-22°F to 131°F).
• Protection level: IP67.
• Dimensions: 420mm × 78.1mm × 82mm.
• Weight: 890 g without eyepiece and CR123A.

Accessories included:

• Quick Start Guide.
• CR123A battery.
• Type C Cable
• Dust cloth.
• Protection bag.
