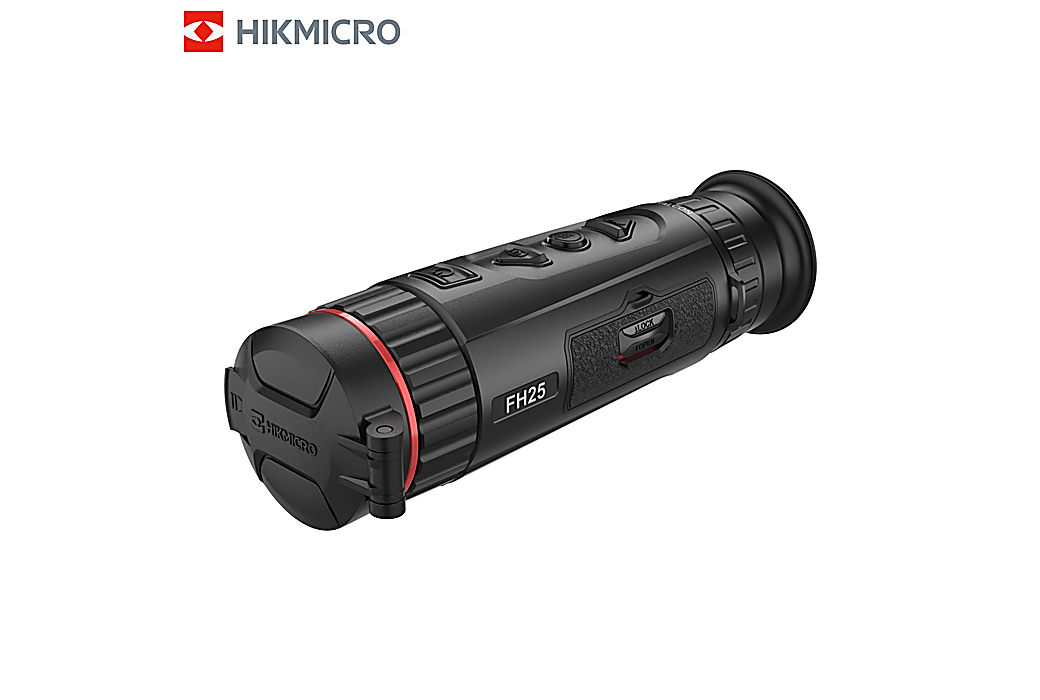

Thermal Imaging Monocular Hikmicro Falcon FH25 25mm (384×288)

HIKMICRO

FH25

New

The Hikmicro Falcon FH25 thermal imaging monocular features the highest specification thermal sensor, a 384x288 12µm thermal core with <20mK NETD sensitivity to deliver incredible performance even in difficult weather conditions. With a detection range of up to 1200m, the Hikmicron Falcon FH25 features advanced thermal performance.

More details

1 649,00 €

AVAILABLE FOR IMMEDIATE DELIVERY

Nobody has posted a review yet
Rate / write a comment

More info

FALCON



Welcome to the Falcon series of advanced thermal monoculars!
Boasting an industry leading SUB 20 NETD sensor paired to an exceptional F0.9 lens system the Falcon delivers the highest performance components available on the commercial market. This translates into an exceptionally high quality image even in the harshest of weather conditions.

The Falcon replaces the popular Owl series and builds on the easy to use, ambidextrous chassis with a highly robust magnesium housing and four buttons that control all functions with ease, even in total darkness. Powered by a removable 18650 battery and with a run time of up to 5 hours the Falcon is ready for the longest trips.

The Falcon is the first HIKMICRO product to offer Image Pro mode. When activated image pro boosts the detail in the image both for animals and background. In addition to Image Pro the Falcon also boasts all of the normal software features found in HIKMICRO products including a choice of 4 colour pallets and access to the HIKMICRO Sight app which allows you to stream, control and record from your thermal monocular. The built in 64GB memory also allows you to save images and videos directly onto the monocular.









FH25



The Hikmicro Falcon FH25 thermal imaging monocular features the highest specification thermal sensor, a 384x288 12µm thermal core with <20mK NETD sensitivity to deliver incredible performance even in difficult weather conditions. With a detection range of up to 1200m, the Hikmicron Falcon FH25 features advanced thermal performance.

Image Pro, enhanced image processing algorithm



Image Pro, HIKMICRO’s self-developed image processing algorithm, ensures the maximum digital image optimization depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background.

Extremely high thermal sensitivity, NETD<20mK



High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background is with minimal temperature difference. Besides, self-developed high TCR vanadium oxide thin film material greatly improves sensitivity. The smallest details of objects and backgrounds can be identified clearly.

High definition thermal sensor, up to 384×288 @12μm



Equipped with 12μm high-end thermal sensor and up to 384×288 pixel resolution offer an excellent temperature resolution to ensure the thermal image significantly sharp and richly contrasted.

Super large aperture f/1.0 lens



With a high-performance aspheric germanium lens more infrared radiation can be captured, and the image will be much clearer. The larger the aperture is, the more infrared radiation can be captured, and the image will be much clearer.

Long detection range up to 1200m and very large field of view up to 22m@100m



Suitable for different observation scenes, giving a considerable advantage when stalking at night over long distances from a raised hide in a field, or providing a perfect overview in wooded area over short distances.

Powerful digital zoom, up to 8x



With 8x digital zoom, objects can be reliably identified and recognized at any time, no details remain hidden, even at great distances.

Replaceable and Rechargeable High Capacity Battery, Not-stop Observation



On one battery pack the device can run up to 7 hours. With the convenient replaceable feature, another battery unit can be used as the spare one which provides enough power for non-stop operation. Besides, any ordinary power bank connected via a Type-C interface can be used as an external power supply.



Significantly Improved Design. Exceptional ease-to-use



1. Ergonomic cylindrical shape design for better operation experience
The compact and premium cylindrical shape design offers the perfect operation experience. It allows for one-handed operation,and is also optimized for both left-handed and right-handed users. Besides, the device adopts soft and skin-friendly material for a better hand feel.

2. Perfect component design for intuitive operation and ease-to-use
The component design has been greatly improved according to user feedback, which is more in line with the needs of users‘ real use scenarios. The buttons arrangement is very user-friendly and with the different shapes, each function can be identified and controlled intuitively and quickly–even when wearing gloves or under complete darkness.

3. Robust magnesium housing and lens coating material for long-time use
The rugged magnesium housing material prevents sweat, rain, mist and dew from corroding. The objective lens adopts SDLC coating technology, which can effectively prevent scratches. With IP67 waterproof-rated, the device can be immersed in up to 1 meter of water for up to 30 minutes.It's perfect for constant and often hard use.



More details









Main features:


  • 384×288 resolution with 12µm sensor
  • 1024x768 resolution 0.39-inch OLED display
  • High sensitivity thermal module NETD <20mK
  • Large aperature F1.0
  • Replaceable and rechargeable Li-ion battery
  • Up to 5 hours continous runtime
  • Leading thermal image processing technology: Image Pro
  • 3 year warranty






Specifications:



THERMAL MODULE
IMAGE SENSOR: VOx Uncooled Focal Plane Arrays
RESOLUTION: 384 x 288
FRAME RATE 50 Hz
PIXEL INTERVAL: 12 μm
RESPONSE WAVEBAND: 8 μm to 14 μm
NETD: Less than 20 mK (@25°C), F# = 1.0
FOCAL LENGTH: 25 mm
APERTURE: F1.0
MIN. FOCUSING DISTANCE: 5.0 m
DIGITAL ZOOM: 1×,2×,4×,8×
OPTICAL MAGNIFICATION: 2.17
FIELD OF VIEW (H × V), DEGREES/M @100 M: 10,5 ° × 7,9 °
DETECTION RANGE: 1200 m

IMAGE DISPLAY
MONITOR 0.39 inch, OLED, 1024 × 768
PALETTES: Black Hot, White Hot, Red Hot, Fusion
FFC (FLAT FIELD CORRECTION) MODE: Auto, Manual, External Correction


SYSTEM
STORAGE: Built-in memory module (64 GB)
RECORD VIDEO: Yes
CAPTURE SNAPSHOT: Yes
STANDBY MODE: Yes
HOTSPOT: Yes
HOT TRACK: Yes


POWER SUPPLY
POWER: 5 V, 1.95 W
BATTERY TYPE: Replaceable and Rechargeable Li-ion Battery
BATTERY OPERATING TIME: 7 hours continuous running with CVBS and hotspot function off (@25°C)


GENERAL
WORK TEMPERATURE/HUMIDITY: From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less
PROTECTION LEVEL: IP67
DIMENSION: 187 x 58 x 65 mm
WEIGHT: 500g



Levering:

  • HIKMICRO FALCON FH25
  • Quick start guide
  • Non-dust cloth
  • USB cable
  • Protective bag
  • Wrist strap
  • Carruing case
  • Charger
  • 2x Battery
  • Neck strap















HIKMICRO SIGHT App for IOS and Android









Download the HIKMICRO SIGHT APP to be able to control the monocular from your smartphone or tablet. HIKMICRO SIGHT will allow you to use all the features of the monocular as if you were controlling it from the device itself. You will also be able to download the images and videos stored in the internal memory of the monocular and for all those models that have a distance meter, it can be activated from the APP HIKMICRO SIGHT. Compatible with all HIKMICRO thermal monocular models

Data sheet

EAN6974004641832
UPC697400464183
