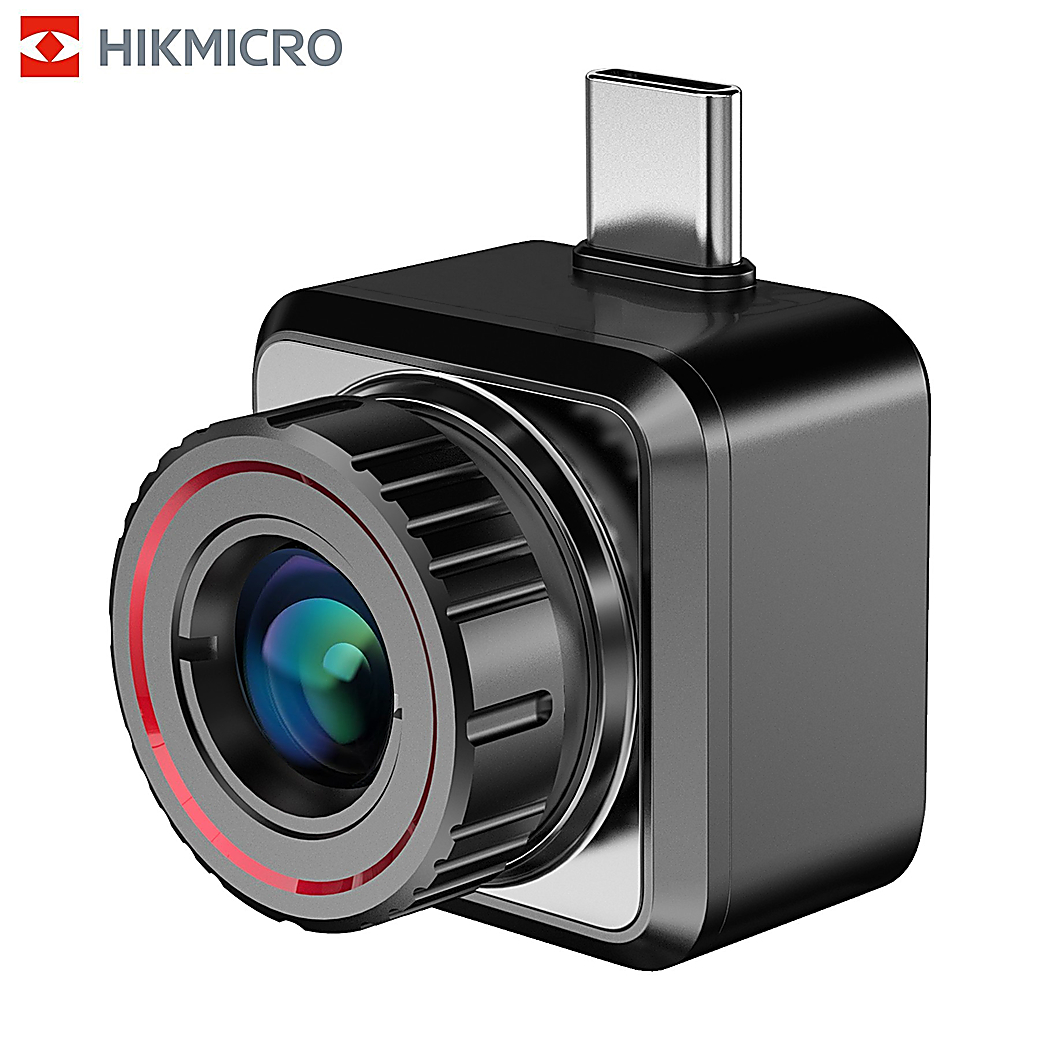

Hikmicro Explorer E20 Plus Thermal Camera for Smartphones

HIKMICRO introduces the next level of compact thermal imaging with the E20 Plus, a miniature device designed to seamlessly integrate with smartphones. By utilizing the phone's power source and display, the device's structure is significantly streamlined, resulting in reduced price and dimensions. The HIKMICRO E20 Plus is compatible with most Android smartphones on the market, thanks to its USB-C interface.

Key Features of the HIKMICRO E20 Plus thermal imaging camera for smartphones include:

• Remarkably compact dimensions for everyday portability.
• 256 x 192 sensor resolution, providing impressive detail considering its size.
• Wide field of view, enabling coverage of large areas at close range.
• High refresh rate for comfortable viewing.
• Six viewing modes for optimal adaptation to various conditions.
• Specialized bird-watching mode for maximum effectiveness in observing avian species.
• USB-C compatibility with most smartphones, ensuring ease of connectivity.
• Ability to capture images and record videos directly to the phone's memory.
• Dust resistance meeting IP40 standard.

The HIKMICRO E20 Plus thermal imaging camera caters to both everyday and field use. Its effective thermal imaging capabilities allow users to observe their surroundings and locate hot water supply pipes within walls, among other applications. Additionally, the device features a specially designed mode for bird watching, ensuring that even the smallest species will not go unnoticed.

The heart of the HIKMICRO E20 Plus thermal imaging camera is an advanced 256x192 sensor with a pixel size of 12 μm and a sensitivity below 35 mK. The device guarantees a true-to-life representation of the environment thanks to its optics with a single magnification. With a weight of just 26 grams, the E20 Plus can be carried effortlessly in any situation.

The HIKMICRO E20 Plus stands out with its advanced and user-friendly software. Navigating the interface feels intuitive, and operating the device via the smartphone's screen immediately feels familiar. The displayed image offers a range of color palettes, allowing users to choose the version that best distinguishes the observed object from the surroundings.

Areas of Usage

Travel, Outlook, Nature, Marine, Hunting, Compact, Birdwatch, Action

Dimensions (W x H x D) (mm)

27 x 27x 27

Field of View (Angle)

18,1 x 13,6

Power Source

USB-C interface

Working Temperature

-10 - +50C

App control

Yes

Weight (kg)

0,026

Thermal sensitivity NETD

50mK

Detection range

970

Objective Lens

97

Specifications:

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Max. Resolution: 256 × 192
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response waveband: 8 μm to 14 μm
• NETD: Less than 50 mK (@25°C,F#=1.0)
• Lens (focal length): 9.7 mm
• Detection Range: 970 m
• Field of View(H × V), Degrees: / m @100m 18.1°13.6°/ 31.8m23.8m
• Aperture: F1.0
• Magnification: 1×-2x (Digital zoom 2x)
• Image Display: Adjustable contrast from 0 to 100 by slider control
• Contrast Adjustment: Adjustable contrast from 0 to 100 by slider control
• Brightness Adjustment: Adjustable contrast from 0 to 100 by slider control
• Image Mode: Birdwatching/Red Hot/ White Hot/Black Hot/Rainbow/Ironbow
• General Power: Consumption: 360 mW, Protection level: IP40, Weight: 26g, Dimension: 26.6mm26.6mm27.2mm, Working Temperature: From -10 °C to 50 °C, Power Supply: USB Type-C interface
• System Record: Video, Capture Snapshot, Digital Magnetic Compass, PIP, Hot Track
