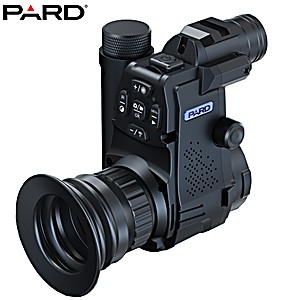

Night Vision Rifle Scope Add-On PARD NV007SP 940nm

New for 2023 the Pard NV007SP uses the existing PARD NV007s platform and makes multiple improvements for increased performance and portability. This small and compact unit now comes with a highly sensitive 2k CMOS sensor with a resolution of 2560x1440 and couples it with advances in PARD technology to bring the best night time performance we have seen in a PARD digital device.

With a 0.001 LUX rating and a 30Hz refresh rate, the new PARD NV007SP is built for night and low light use. It comes equipped with a 22.5mm objective lens and 4x digital zoom. The viewfinder inside the NV007SP is OLED-based and has a resolution of 1024x768 with colour or black and white, providing a crisp, clear image to ensure you can easily assess your prey and surroundings before taking a picture.

As we saw with the PARD NV007s, the 007SP series features the same but improved attachment system, which allows for quick and simple attachment in an everyday application, dramatically opening up the possibilities for your current range. Also, by being shock resistant up to a .308 calibre, its range of uses in firearms has been increased.

Built to last the PARD NV007SP is capable of surviving the harshest of conditions. It features an IP67 rating that makes the unit dust and waterproof.

Being portable is key any sighting complement, so the new design takes into account size and overall weight, ensuring your hunts won't be hampered.

A useful new feature on the PARD NV007SP is RAV (Recoil Video Activated) video capture, which allows you to concentrate on your catch and not miss any exciting moments, as the system buffers everything the rig sees when you pull the trigger without worrying about putting it on record. That way you have a complete video of what you saw before the scene and at the moment of the scene.

The on board IR illuminator has a 5 WATT 850nm or 940nm IR and has 3 levels of illumination with an accepted performance distance of 350m.

The standard 18650 3.7v battery is supplied with the unit will run the optics up to 8 hours.

Key Features:

• 2560*1440 (2k) optical sensor
• 22.5mm objective, 4.0x base magnification
• 850nm / 940nm
• Optional IR Illuminator (5 watt)
• Mounts to the back of your staff with included 45mm adapter (fits any staff smaller than 45mm)
• 48mm adapter available, but must be purchased separately
• 1x 18650 removable battery (+8hrs operation)
• Micro SD storage for recording,
• WiFi connectivity

SENSOR:

• Resolution(px) 2560*1440
• Sensitivity(Lux) 0,001
• Refresh rate(fps) 30

OPTICS:

• Objective lens(mm) 22.5
• Optical magnification(x) 4
• Digital zoom(x) 1-3.5
• Continuous digital zoom(x) 4-14
• Field of View (H×V) horizontal 22°, vertical 12°, diagonal 25°
• Eyepiece relief(mm) 25
• Diopter adjustment ±5D
• Focus range 3cm-∞
• Adapter diameter(mm) 45/48

IR:

• VCSEL IR type
• IR power(w) 5
• Infrared illumination level 3
• IR distance 350m/383yds
• IR wavelength(nm) 850/940

DISPLAY:

• OLED type
• Resolution(px) 1024*768
• Colour Mode Color/Black&White

PHOTO/VIDEO:

• Photo resolution(px) 2592*1944
• Photo format JPG
• Video Resolution(px) 1920*1080
• Video Format MP4
• TF Card Storage (128GB MAX)

FUNCTIONS:

• LRF detection range 1097m/1200yards
• Measurement Units in meters or yard
• Red dot is optional
• Auto Recording Yes
• Auto Recording Yes
• Loop Recording Yes
• Time Stamping Yes
• Audio Recording Yes
• Beep Sound Yes

CONNECTIONS:

• USB Type C Yes
• HDMI Output Yes
• WiFi Yes
• PardVision Supported Apps

POWER:

• Battery type 18650 Lithium-ion battery
• Output voltage(V) 3.7
• Operating time(h,max) 8
• External power supply(V) USB Type C

ENVIRONMENTAL CHARACTERISTICS:

• IP67 Degree of protection
• Operating temperature -25℃ ~40℃/-13℉~104℉
• Recoil power(J) 6000

MATERIAL:

• AL6061 Housing & Plastic
• Objective lens Glass

MEASUREMENTS:

• Product size(W x W x H, mm) 105*120*71/105*134*71
• N.W/pcs(with/without battery, g) 335/290 | 355/310
