The XT Mounts provide a lightweight, affordable scope mounting solution without sacrificing any build quality. Element Optics has designed the XT Mounts to be structurally solid, with looks to compliment the sleekest of rifle setups.
The XT Mounts provide a lightweight, affordable scope mounting solution without sacrificing any build quality. Element Optics has designed the XT Mounts to be structurally solid, with looks to compliment the sleekest of rifle setups.

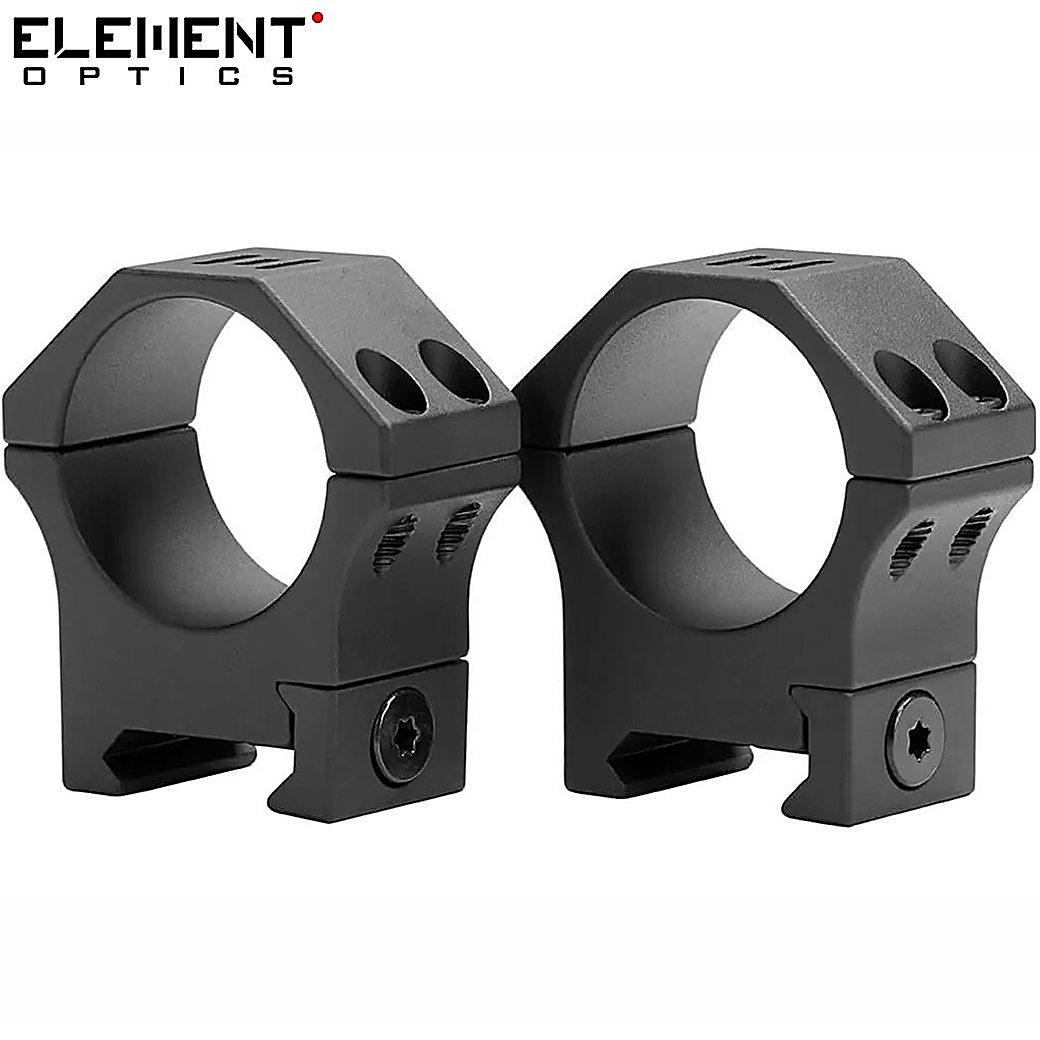

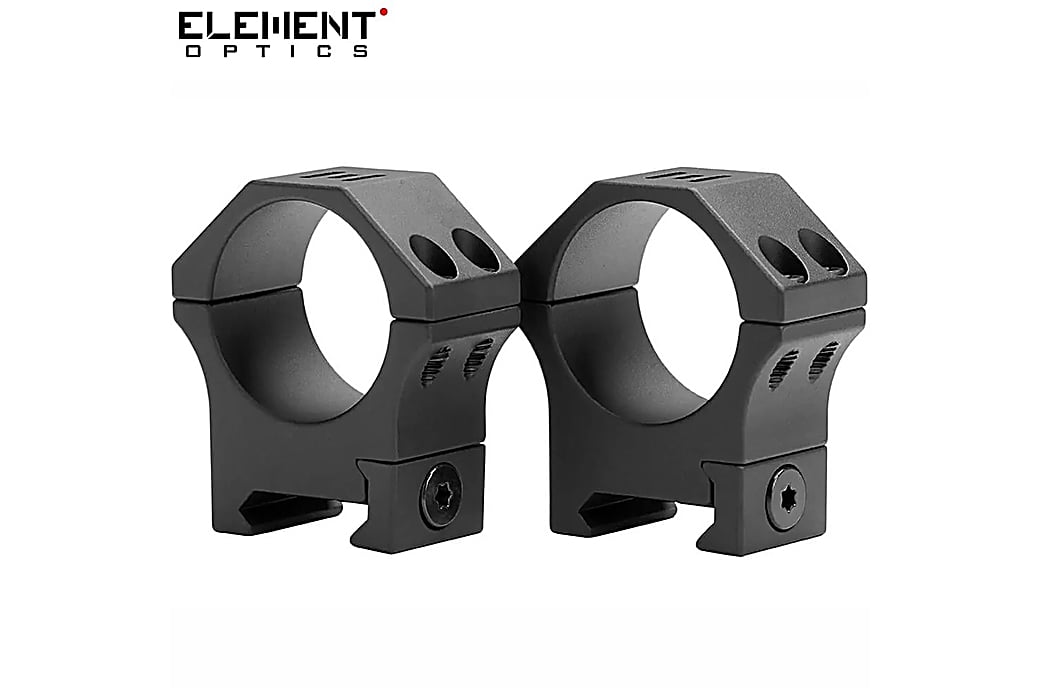

This Element Optics XT mounts 30 mm Weaver/Picatinny mount consists of two parts and it has a highly durable construction. The mount is made of black anodized aluminium which can take a hit. It can be mounted firmly onto a Weaver/Picatinny accessory rail. This version is the low mount, allowing you to mount your scope as close to the barrel as possible.
Torque guidelines should be followed for the best possible results, as overtorquing rings can lead to temporary or permanent damage of the riflescope body tube and internals.
MODEL | 30mm Picatinny L | 30mm Picatinny M | 30mm Picatinny LH |
HEIGHT | 21.9mm
(0.86”) | 25mm
(0.98”) | 28.9mm
(1.14”) |
WEIGHT (PAIR) | 86.2g
(3.0oz) | 98g
(3.45oz) | 110g
(3.88oz) |
MATERIAL | 6061 ALUMINUM | ||
MOUNTS TO | PICATINNY | DOVETAIL | ||
TOOLS REQUIRED | T15 TORX | ||
MAX TORQUE (RINGS) | 18 IN-LBS (2.0NM) | ||
MAX TORQUE (BASE) | 35 IN-LBS (4.0NM) |
Tube diameter | 30 mm |
Mounting Rail | Weaver | Picatinny |
EAN | 0760655918272 |
UPC | 760655918272 |
