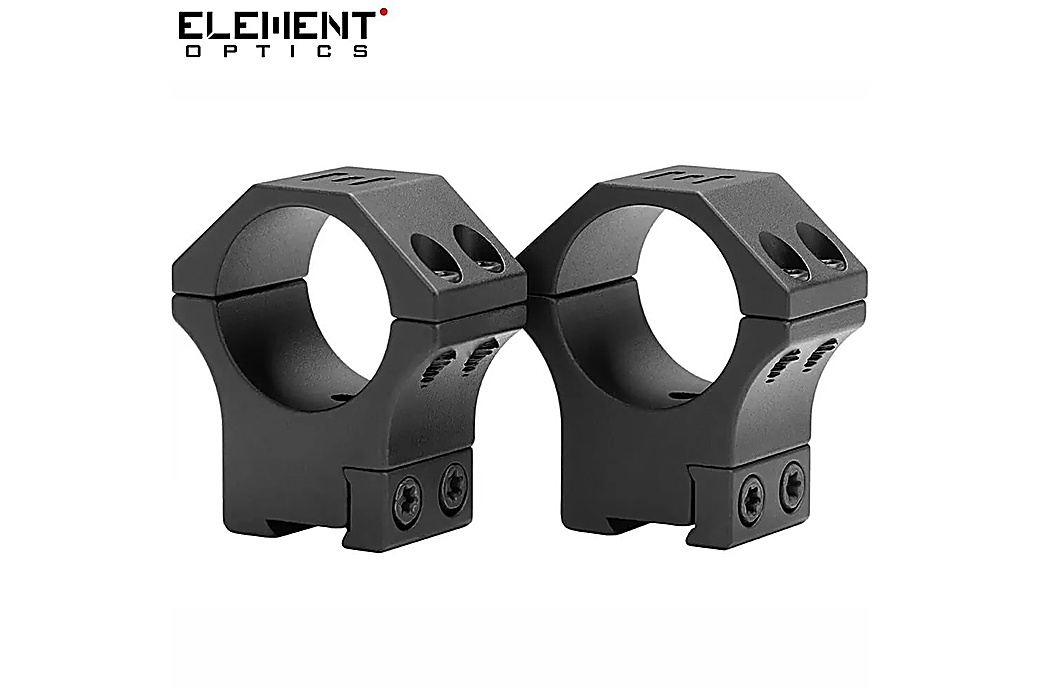

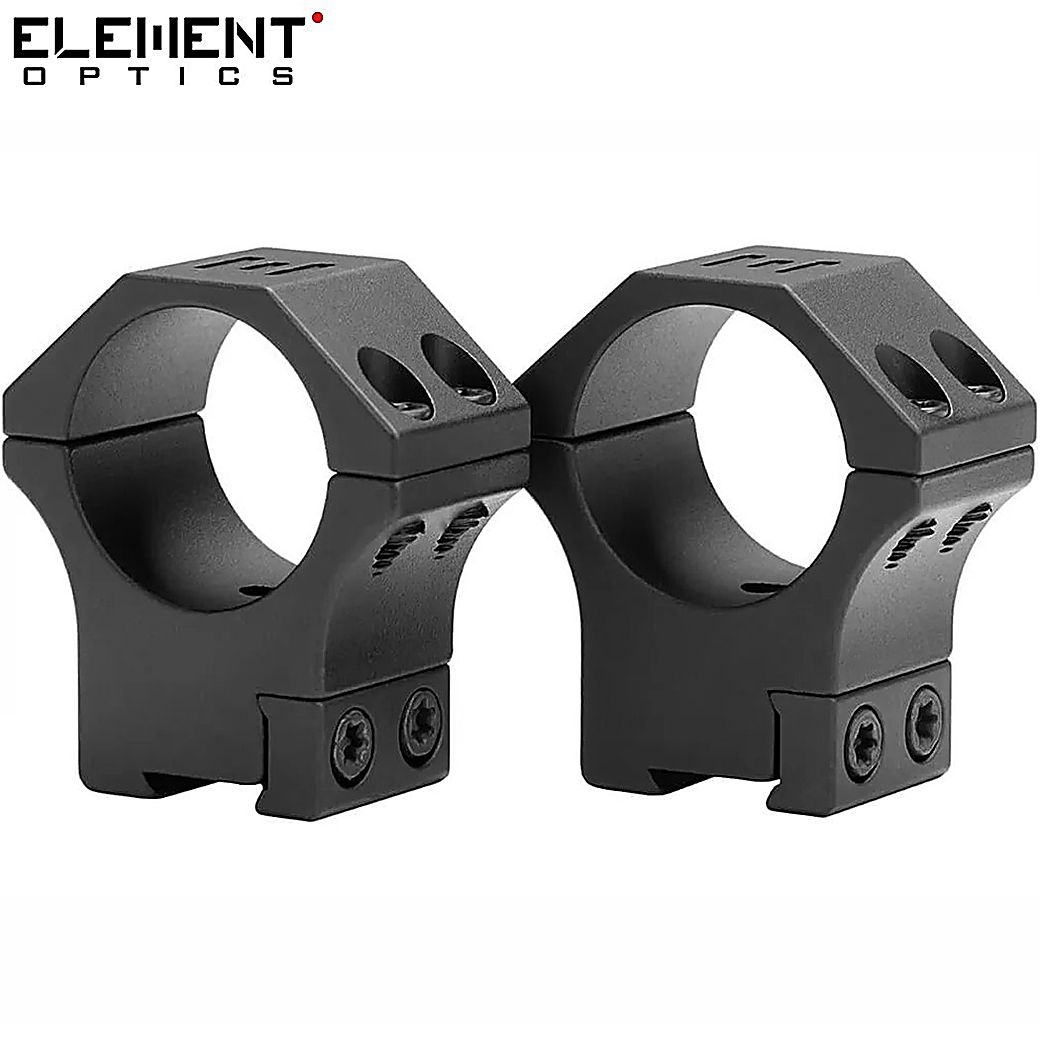

Element Optics XT Mounts 2pc 1" High 9-11mm Dovetail
54015
New
The XT Mounts provide a lightweight, affordable scope mounting solution without sacrificing any build quality. Element Optics has designed the XT Mounts to be structurally solid, with looks to compliment the sleekest of rifle setups.
More info
The XT Mounts provide a lightweight, affordable scope mounting solution without sacrificing any build quality. Element Optics has designed the XT Mounts to be structurally solid, with looks to compliment the sleekest of rifle setups.
This Element Optics XT mounts 1" 9-11mm Dovetail mount consists of two parts and it has a highly durable construction. The mount is made of black anodized aluminium which can take a hit. It can be mounted firmly onto a Dovetail accessory rail. This version is the high mount, allowing you to raise your scope away from the barrel.
Torque guidelines should be followed for the best possible results, as overtorquing rings can lead to temporary or permanent damage of the riflescope body tube and internals.
| MODEL | 1 ” Dovetail L | 1 ” Dovetail M | 1 ” Dovetail H |
| HEIGHT | 22.7mm
(0.97”) | 26.7mm
(1.05”) | 31.7mm
(1.25”) |
| WEIGHT (PAIR) | 72.2g
(2.55oz) | 83.6g
(2.95oz) | 96.2g
(3.39oz) |
| MATERIAL | 6061 ALUMINUM | ||
| MOUNTS TO | PICATINNY | DOVETAIL | ||
| TOOLS REQUIRED | T15 TORX | ||
| MAX TORQUE (RINGS) | 18 IN-LBS (2.0NM) | ||
| MAX TORQUE (BASE) | 35 IN-LBS (4.0NM) | ||
Data sheet
| Tube diameter | 1" / 25,4 mm |
| Mounting Rail | 9-11mm (3/8") Dovetail |
| EAN | 0760655918326 |
| UPC | 760655918326 |
